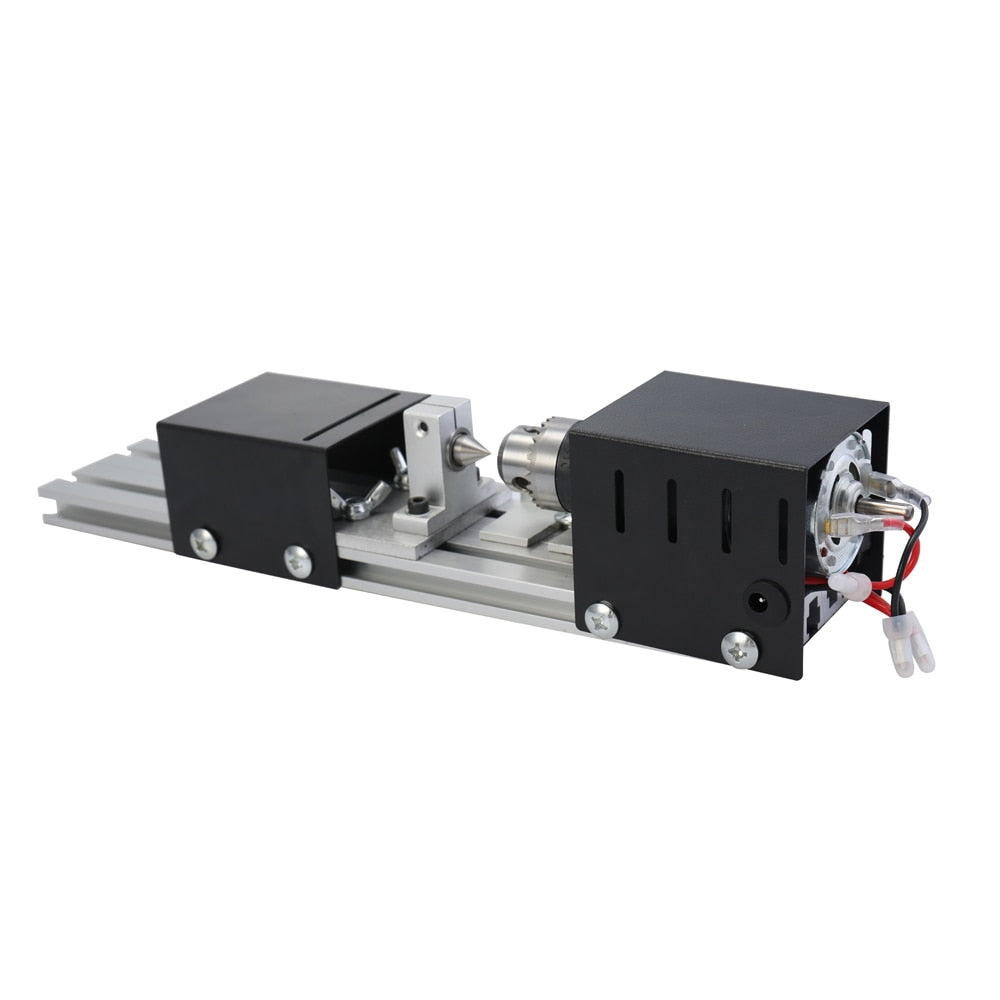

Mini Wood Turning DIY Lathe Machine

Mini Wood Turning DIY Lathe Machine

Regular price $74.95
Regular price $99.99 Sale price $74.95
Sale Sold out

Premium Mini Wood Turning DIY Lathe Machine

Looking for a convenient way to enhance your crafting skills and create stunning sculptures? Our Mini Wood Turning DIY Lathe Machine was designed for DIY enthusiasts who need a highly precise and stable mini lathe to craft everything imaginable.

Although small in size, the wood turning lathe was designed to simulate larger lathe machines and make the wood working process extremely simple. Due to the large torque ball bearing motor, this mini wood lathe provides extremely low-noise operation with higher than normal precision and stability due to its portable size.

Best part of all, the mini lathe machine offers full control to the user when it comes to the controls. There are 7 different power levels on this benchtop lathe, all equipped with different rotating speeds to match the desired cutting speed. Take full control of the lathing experience and create your best sculptures!

Mini Wood Turning DIY Lathe Machine

FEATURES

EASY TO USE - Our small lathe is extremely easy to use and setup. Simply unbox the package the small wood lathe came in, plop it onto the desired work desk, connect the provided power supply cable, and turn on the switch.

BUILT TO LAST - Simply put, our DIY lathe was designed to last for years. The outer and inner layers of the mini wood lathe are designed with stainless steel, acrylic, and aluminum alloy to ensure durability and strength. The motor comes with special material created to slow the heating process and there are multiple vents on the side as well.

Best Mini Lathe

EXTREME POWER - The motor built into the DIY small wood lathe is a power machine simply because it can rotate the wood turner at a maximum speed of 7000RPM with low noise. The speed is fully adjustable on the mini lathe machine.

SPECIFICATIONS

Material: Aluminum Alloy + Stainless Steel
Voltage: AC 100-240V 50/60Hz
Rated Voltage: 12-24V DC
Rated Power: 100W
Rated Speed: 1500-7000RPM
Power: 7 Level of Adjustable Speed
Processing Length: 140mm / 5.51in
Processing Diameter: 55mm / 2.16in
Chuck Clamping Range: 0.6-6.5mm / 0.02-0.25in
Swing Diameter: max 50mm / 2.0in
Grip Length: max 140mm / 5.51in
Matching Saw Blade Diameter: max 50mm / 2.0in
Machine Size: 325 * 65 * 70mm / 12.8 * 2.6 * 2.8in
Machine Weight: 1650g / 3.64 lb

PACKAGE CONTENT

1 * Mini Lathe Wood Machine
1 * Speed Control Power Supply (12-24V)
6 * Wood Carving Blade
1 * Screw Thread Fixed Needle
3 * Hex Shank Fixed Needle
1 * Collet Wrench
1 * Hexagon Wrench

SHIPPING INFORMATION
Domestic Shipping (USA): Your mini lathe machine will be packaged and shipped within 3 days of ordering. Keep in mind our items are custom made and shipped from warehouses across the globe which means it may take them 7 to 22 business days to arrive after shipment (most of the time closer to 12).
International Shipping: The lathe wood machine will be packaged and shipped within 5 days of order. We do ship worldwide! Please be patient and note that delivery times will vary depending on your location. Majority of the countries will have the Mini Wood Turning DIY Lathe Machine delivered within 2 to 5 weeks!
